|Semi-Solid Workstation PAL|
|Semi-Solid Sample Preparation Workstation|
Conventional pipettes and syringes are not suited to handling high density samples such as creams and emulsions. The sample will be tend to adhere to the tip resulting in poor precision and accuracy.
The Semi-Solid Workstation is designed to automate the weighing of semisolid samples, having the qualities of both a solid and a liquid, in 20ml or 10ml uncapped vials. Semi-solid samples can be a cream and highly viscous consistency and may represent toothpaste, lotion, ointment, oil, perfumes,essence, cosmetic, paste, emulsion oils, salve, liniment, fuels, unguent, lubricant,radioactive materials, drug products and baby food. The LEAP has adapted the Ranin's Pos-D™ technology for use on the PALx,y,z robotic autosampler and also works well for applications requiring the pipetting of viscous, volatile, dense, or high surface- tension liquids or contaminated liquids and hazardous or radioactive compounds. It can even eliminate cross contamination in PCR, forensics and diagnostics.
- Molecular biology
- Forensic science
- PCR studies
- Food and beverage
- Industrial laboratories
What is an Semi-Solid experiment ?
Performing dispensing of semi-solid liquids manually involves the tedious task of pipetting a cream or similar viscous material into tared vials and then reweighing them to determine the exact weight afterward. From this step the process can do various sample prep steps including dilutions and filtration either online or on a separate workstation. LEAP strives to over come the challenges and characterizations of semi-solids morphology, composition and spatial distribution.
Overview of Semi-Solid PAL System
Semi-Solid Workstation is an easy-to-use, system that provides an automated process for the scheduling and repetitive execution of weighing and dispensing workflow. By use of the advanced LEAP Shell scheduling software experimental design is simplified and reliable.
The application will tare vials, then the system will add a semi solid 'cream' to each vial with individual disposable tips. Once the samples in the sample list are dispensed each vial is re-weighed and calculation and report of the net sample weight. A barcode scanner is included in the setup, and scanning is an option in the method. Values for sample ID, barcode, tare weight and sample weight are recorded in a text file. Barcode validation is optional if the codes do not match from the tare step to the weigh step, the sample is flagged in the output file. It is designed so that the output file can be imported into the sample list of another PAL workstation which will use the sample ID and weight information to do an automatic proportional dilutions and filtration step.
What does the Semi-Solid PAL do?
The vial is transported using a mechanical gripper which will accommodate 10 or 20 mL vials which are uncapped, screw-capped or crimp-capped

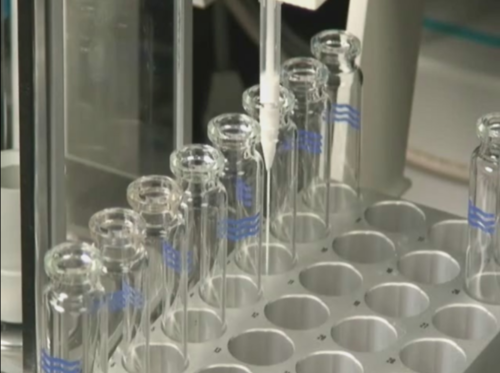

Positive displacement disposable tips are used to dispense the semi-solid liquid (cream)into uncapped vials
A barcode scanner is included in the setup, and scanning is an option in the method
The balance PAL provides the integration of a robotic accessible balance with the x,y,z, robot platform
Sample Process of the Semi-Solid PAL

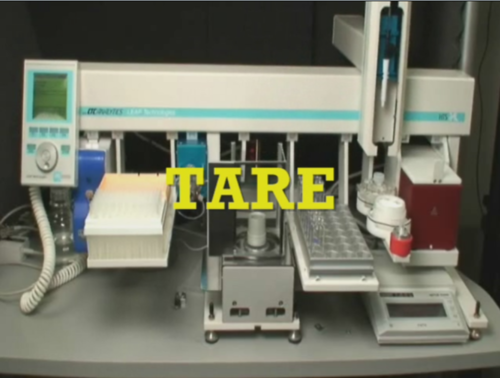

- Tare empty vials

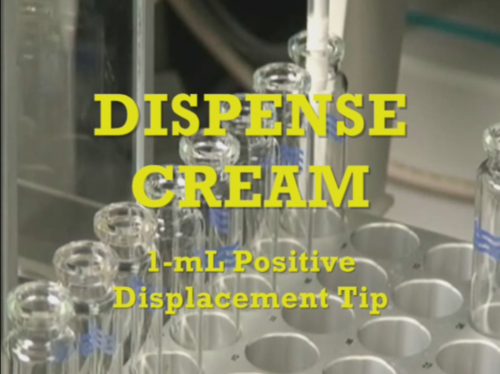

- Dispense semi-solid to each vial with individual disposable tips

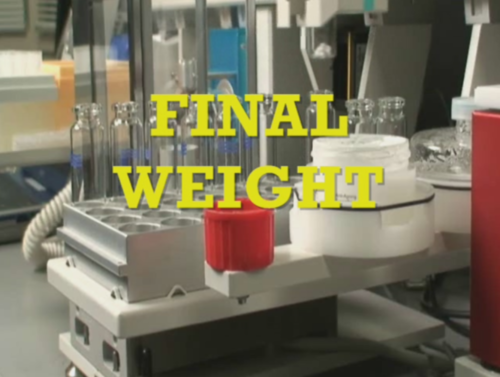

- Each vial is re-weighed and calculation and report of the net sample weight is created
- Values for sample ID, barcode, tare weight and sample weight are recorded in a text file
- Barcode validation is optional if the codes do not match from the tare step to the weigh step, the sample is flagged in the output file
- Output file can be imported into the sample list of another PAL workstation which will use the sample ID and weight information to do an automatic proportional dilution and filtration step
The Pos-D™ is especially suited for liquids with high densities, viscosities or vapor pressures. Given the disposable capillaries and pistons, positive displacement absolutely eliminates cross-contamination from aerosols, samples or pipette.
Very viscous, high surface-tension or high density liquids such as 50% glycerol solutions, detergents, oil, syrup or even can be easily pipetted with accuracy and precision
Provides ease, speed, accuracy, precision & safety of these difficult samples
Use of a Positive Displacement Pipette overcomes many of the challenges of semi-solid samples
- Zero Carryover
- High accuracy and precision of difficult liquids
The PAL has been adapted to hold this removable tip assembly in place of a syringe
Quality control of such samples as creams perfumes, emulsions and lotions require repeated sample prep steps that are well suited for the LEAP Semi-Solid PAL
Sometimes samples are too viscous to pipette accurately even with Pos-D™ e.g. thick creams & lotions. For assurance of good repeatability, sample volumes can be confirmed gravimetrically. LEAP incorporates one of a Mettler ‘s SAG range of balances which is fully integrated into the system. The sample re-constitution volume is calculated from the actual weight. Provides repeatable sample prep for even the most difficult samples.
LEAP has developed a scheduling application using their proprietary software “LEAP Shell” which will automate the above steps.

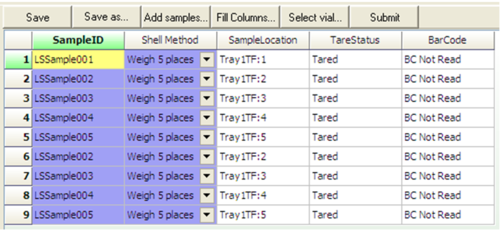

LEAP Shell Screen Shot 2: LEAP Shell Sample List display:
LEAP Shell Screen Shot 3: LEAP Shell Sample Batch display:
Detailed information on RANIN's Pos-D™ technology
Positive Displacement pipettes
Pos-D™ has a disposable piston, which moves within a plastic capillary, makes direct contact with the liquid. The positive wiping action of the piston against the capillary wall assures complete dispensing without droplets.
- Both Piston and capillary are disposable and come as a unit
- With no elastic air space to expand or contract, the aspiration force remains constant, unaffected by the physical properties of the sample.
- There is no need to assemble pistons into capillaries before use as they are preassembled in covered racks
- All capillaries and pistons are presterilized
Disposable tips come in a range of volumes from 10ul to 1ml
For further information please visit the manufacture of the pipettes at http://www.rainin.com/pdf/posd_manual.pdf
RANIN's Pos-D™ technology Positive Displacement Mechanics
The PAL has been adapted to hold this removable tip assembly in place of a syringe
- The plunger drive on the PAL is specially modified to allow gripping of the piston stem and actuation of the piston
- The PAL reliably picks up and ejects tips to a waste container after use

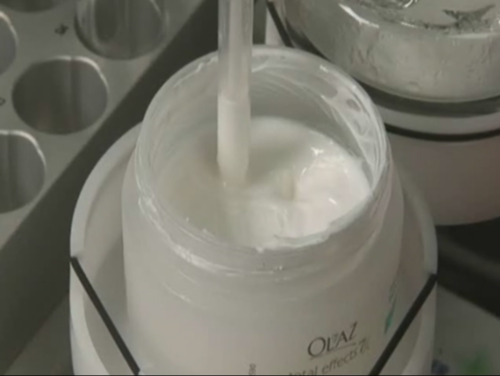

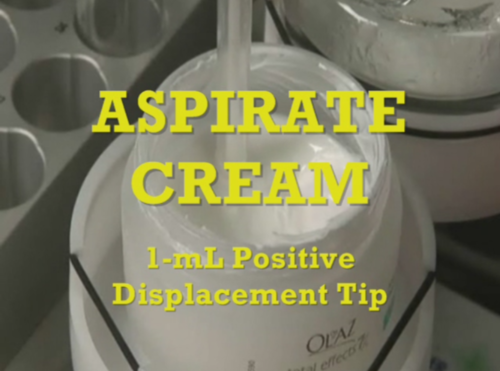

- Robotic control allows the tip to track down into the cream as it is aspirated – compensating for the lack of “flow” in the semi-solid sample
Reference on pipettes including images of tips is available at manufacture of Pos-D™ at http://www.rainin.com/pdf/posd_manual.pdf
Videos of the PAL
