	XChange
	Application Type
	Applications
	Application ID
	Syringe exchange
	Description
	XCHANGE® Option for automated syringe exchange

 ↳ leaptec.com
 ↳ leapwiki.com

XCHANGE® Option for automated syringe exchange

XCHANGE® is a coupling system easily integrated onto the PAL-xt platforms giving increased flexibility.

Automated syringe exchange enables new application possibilities with enhanced flexibility
Main features are:
• Injection of small and large volumes in one sample sequence
• Syringe is exchanged, aligned and locked automatically
• Syringes are available for LC or GC
• Adding of internal standards without cross contamination
• Preventative exchange of syringe when using harmful media
• Choice of 9 different syringe volumes
• Serial dilution
• MEPS option for in-syringe SPE
• Liquid-Liquid extraction in 2ml and 10ml vials
• Fast wash station or standard wash station
• Automatic exchange of syringes with wear during large sample batches

Automated syringe exchange enables new application possibilities with enhanced flexibility
The XCHANGE® coupling system secures and locks the syringe in place. This is achieved by a mating mechanical piece that captures the syringe and a magnet that automatically aligns – eliminating the need for springs, screws, or alignment gauges. Once engaged the syringe is locked into position requiring zero holding force.

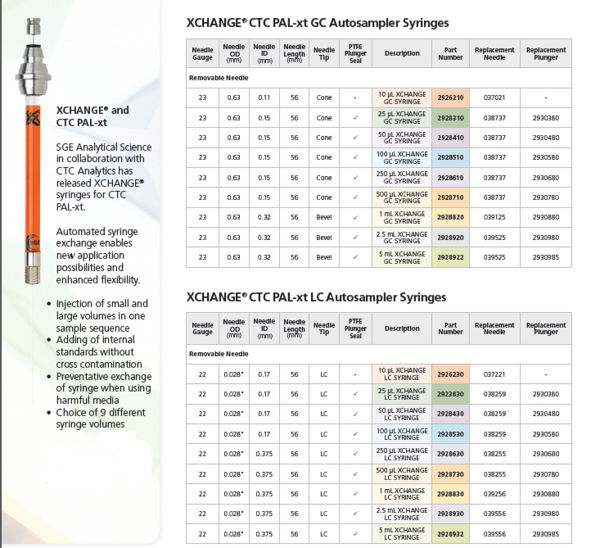

XCHANGE ® syringes (10µl, 25ul, 100µl, 250ul, 500ul, 1ml, 2.5ml and 5ml)
XCHANGE® analytical syringes can be easily and quickly changed. This allows the user to choose the best syringe for the volume being measured. It also allows the user to dedicate individual syringe to specific liquids or methods, reducing the possibility of cross-contamination. Only a few XCHANGE syringes are required to dispense liquid volumes from 0.2 μL to 500 μL.
The new XCHANGE® Option which is fully implemented on the PAL-xt platforms.
Automated syringe exchange enables new application possibilities with enhanced flexibility.

The XCHANGE® coupling system secures and locks the syringe in place. This is achieved by a mating mechanical piece that captures the syringe and a magnet that automatically aligns – eliminating the need for springs, screws, or alignment gauges. Once engaged the syringe is locked into position requiring zero holding force.

Known limitations of XCHANGE® on the PAL-xt
1. XCHANGE® is only available for PAL-xt instruments
2. Requires PAL Firmware 4.2.x
3. Automatic Syringe recognition of PAL-xt must be turned on
4. There is only space for Wash Stations, GC inlet or Valves, CTC Agi behind the Park Station. No Tray Holder or Stack can be placed behind the XCHANGE Park Station
5. Max Penetration Depth = 40mm
6. XCHANGE is currently only available for the GC-xt, Combi-xt, HTS-xt instruments (80cm)

Download of XCHANGE Flyer

LEAP XCHANGE Information Document
‎‎

Contact LEAP For additional information about LEAP and the PAL Platform, please contact LEAP Technologies.

Consumables by SGE

http://www.sge.com/products/syringes/xchange-syringes2
